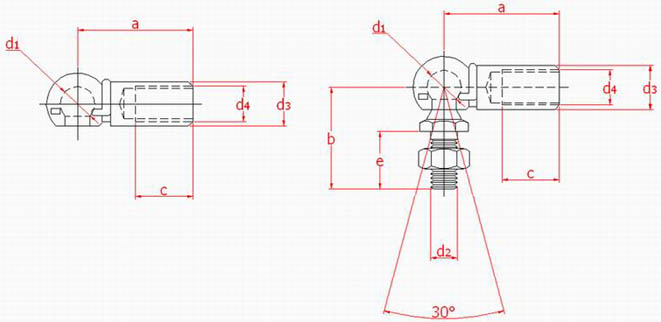

Standard Globe joint

TYPE a b c e d1 d2 d3 d4
KMF 5 22 20 10 12 8
M 5
3/16 NF
8
M 5
3/16 NF
KMF 6 25 24 11,5 13,5 10
M 6
1/4 NF
10
M 6
1/4 NF
KMF 6-A 25 24 11,5 15 10
M 8
5/16 NF
13
M 6
1/4 NF
KMF 8 30 29 14 18 13
M 8
5/16 NF
13
M 8
5/16 NF
KMF 8-A 30 29 14 18 13
M 10
3/8 NF
13
M 8
5/16 NF
KMF 10 35 36 16 20 16
M 10
3/8 NF
13
M 16
3/8 NF
KMF 12 40 40 20 25 20
M 12
1/2 NF
18
M 12
1/2 NF
